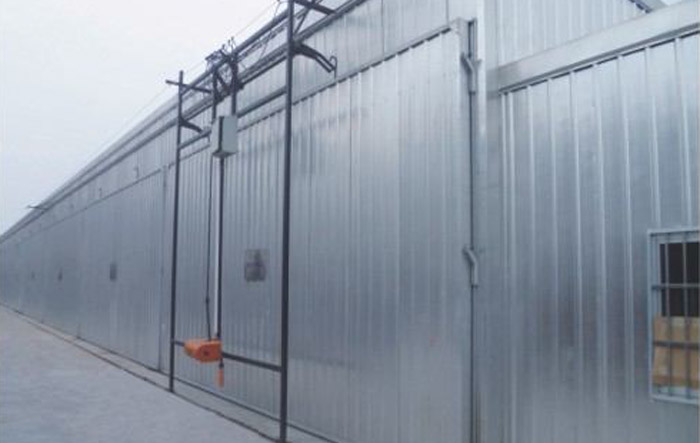

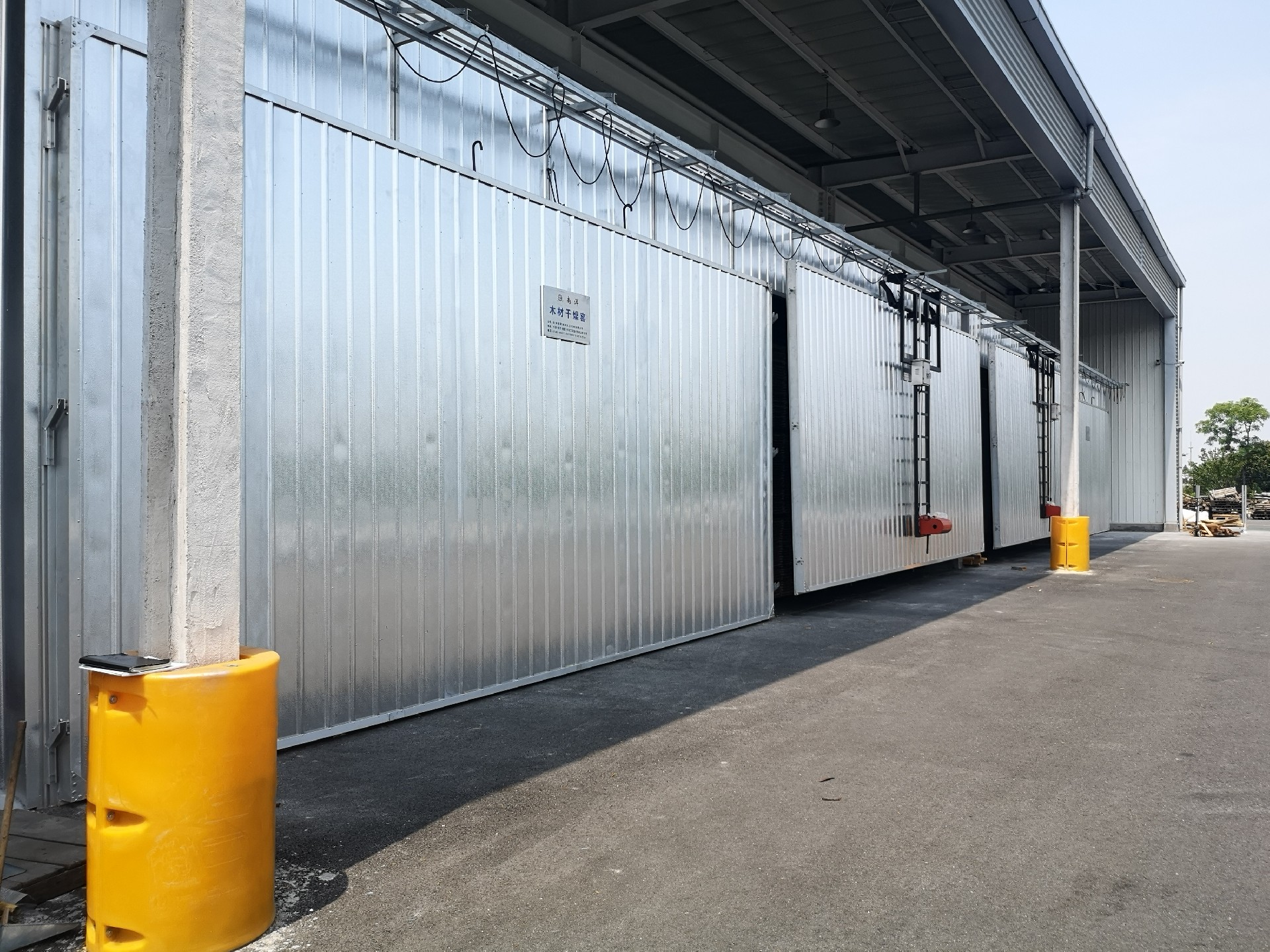

全鋁合金結構配置：
?全鋁合金組裝殼體，全不銹鋼連接螺栓
?干燥窯內管路采用不銹鋼鋼管

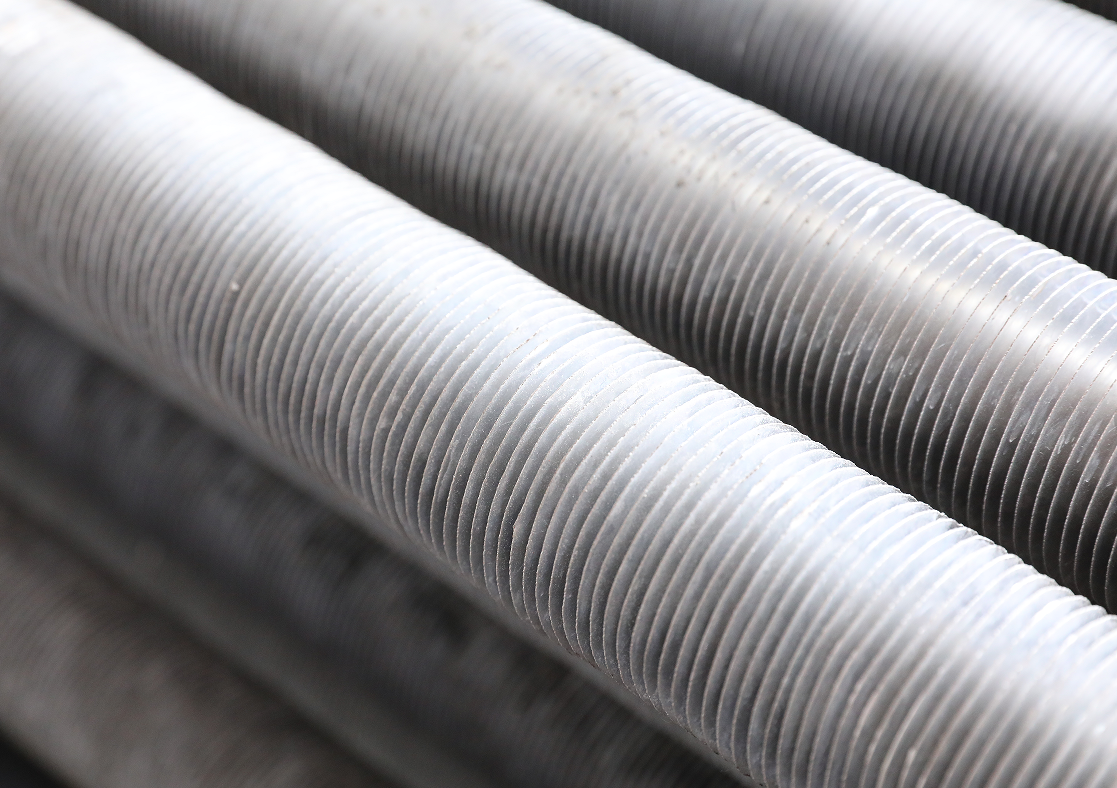

?散熱器采用金屬復合散熱管，基管為不銹鋼

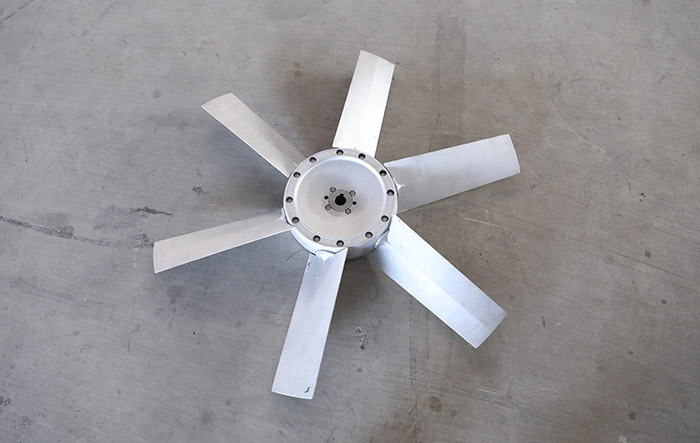

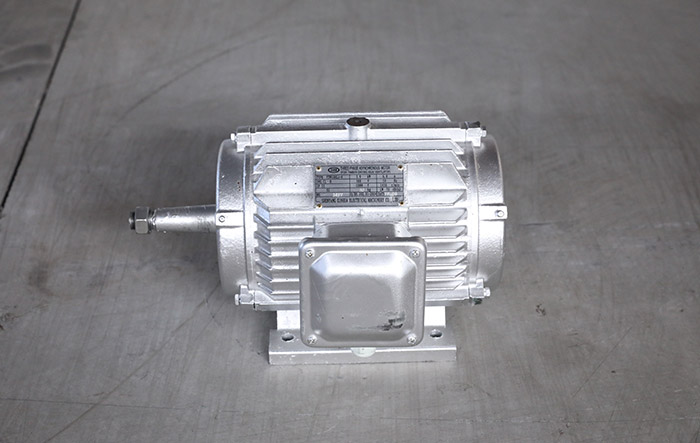

?循環風機為耐高溫高濕電機、鋁合金壓鑄葉輪、機架
?加熱電動閥、噴蒸電磁閥、排濕電機均原裝進口

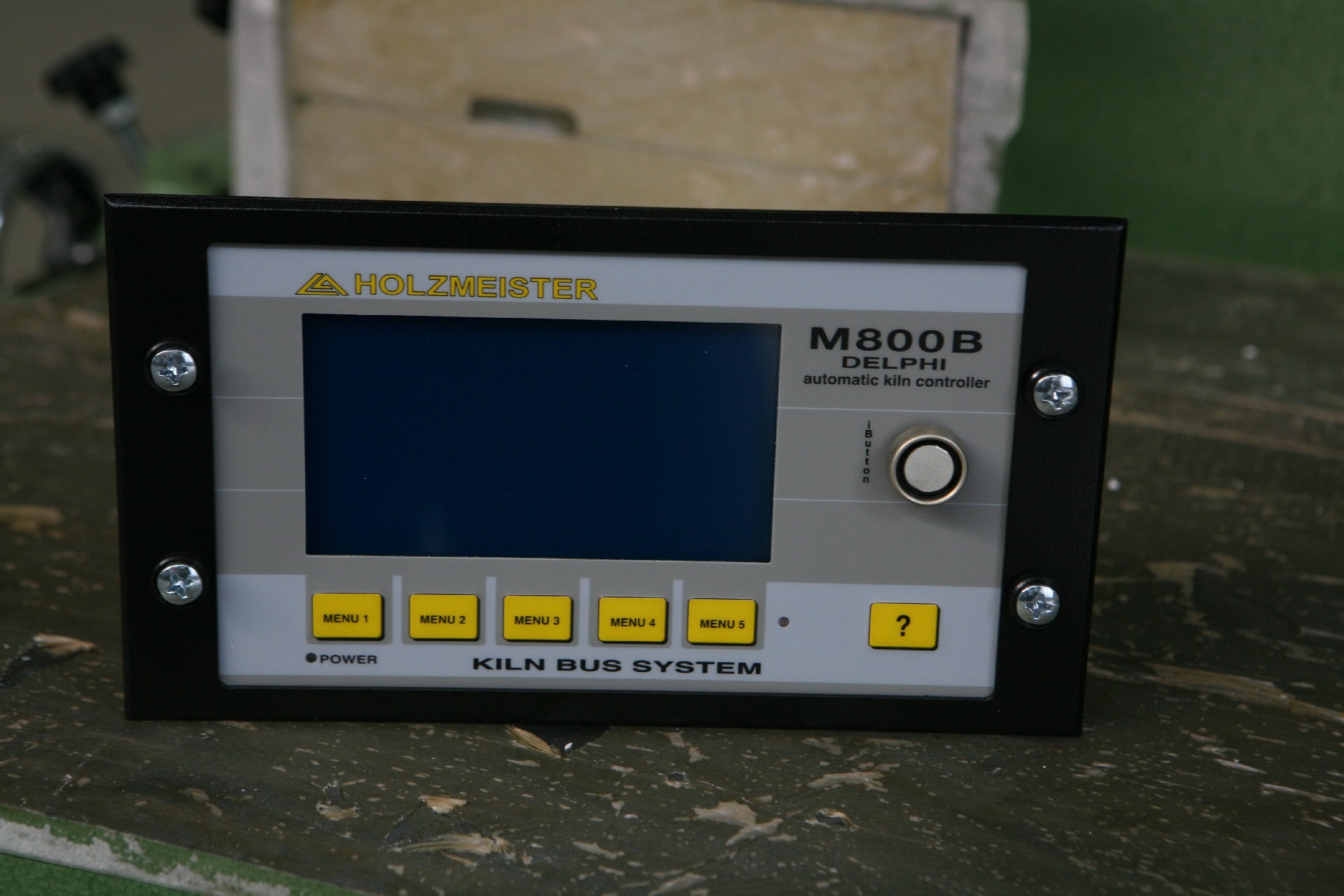

?控制儀、傳感器均進口

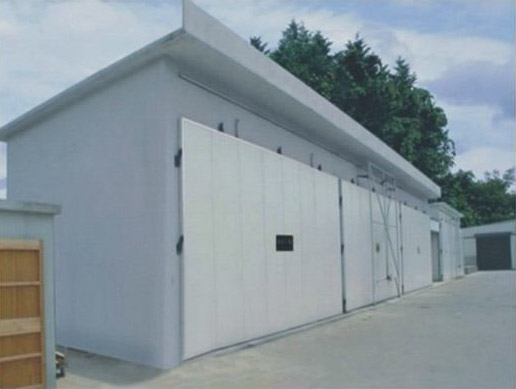

土建磚砌體配置：
?土建窯體
?內部結構配置按全鋁合金結構
型號 | 理論裝材量m3 | 堆材尺寸 | 窯外尺寸 | 電機臺數 | 總功率kw | 風機型號 | 干燥熱源 |
鋁合金結構 | |||||||
MYHG-60 | 30 | 4000x3600x4200 | 4400X5000X5500 | 2 | 6 | Φ800 | 蒸汽 |
MYHG-80 | 40 | 4000x4600x4200 | 4400x6200x5500 | 2 | 6 | ||
MYHG-100 | 50 | 6000x3800x4200 | 6400x5000x5500 | 3 | 9 | ||
MYHG-120 | 60 | 6000x4600x4200 | 6400x6200x5500 | 3 | 9 | ||
MYHG-160 | 80 | 8000x4600x4200 | 8400x6200x5500 | 4 | 12 | ||
NYHG-200 | 100 | 8000x6000x4200 | 8400x8000x5500 | 5 | 15 | ||
MYHG-240 | 120 | 10000x6000x4200 | 10500X8000X5500 | 6 | 18 | ||
MYHG-300 | 150 | 12000x6000x4200 | 12600x8000x5500 | 8 | 24 | ||
MYHG-400 | 200 | 12000x7000x4200 | 12600x9200x6100 | 10 | 30 | ||
土建磚砌體結構 | |||||||
MYHZ-60 | 30 | 4000x3600x4200 | 4400X5000X5500 | 2 | 6 | Φ800 | 蒸汽 |
MYHZ-80 | 40 | 4000X4600X4200 | 4400X6200X5500 | 2 | 6 | ||
MYHZ-100 | 50 | 6000X3800X4200 | 6400x5000x5500 | 3 | 9 | ||
MYHZ-120 | 60 | 6000x4600x4200 | 6400X6200X5500 | 3 | 9 | ||
MYHZ-160 | 80 | 8000X4600X4200 | 8400X6200X5500 | 4 | 12 | ||
MYHZ-200 | 100 | 8000X6000X4200 | 8400X8000X5500 | 5 | 15 | ||
MYHZ-240 | 120 | 10000x6000x4200 | 10500x8000x5500 | 6 | 18 | ||
MYHZ-300 | 150 | 12000X6000X4200 | 12600X8000X5500 | 8 | 24 | ||
MYHZ-400 | 200 | 12000X7000X4200 | 12600X9200X6100 | 10 | 30 | ||
