YFLMH021-W type finished product washing machine

◆ Application

This machine is suitable for chemical fiber woven stretch cloth under low expansion force, open width to remove sewage washing, pre-shrinking, desizing refining water washing. It can also be used for open width soaping after dyeing of chemical fiber machine cylinder.

◆Technical parameter

公稱幅寬 Machine width	導(dǎo)布輥直徑 Diameter of guide roller	機(jī)械車速 Machine speed	水洗段軋車 Wash section rolling car
1800-2800mm	Ф570mm, Ф800mm	15-100m/min	敞開式Open type

◆ Technical characteristics

1, the equipment adopts the rise force sensor to control the synchronous operation of low rise force.
2. When the four-sided elastic cloth shrinks, each net roller is equipped with a frequency converter, which can set the excess amount to meet the requirements of pre-shrinking.
3, the equipment adopts closed form, save steam, reduce energy consumption.
4, after dyeing, open width washing, open width machine and washing machine can be synchronized operation.

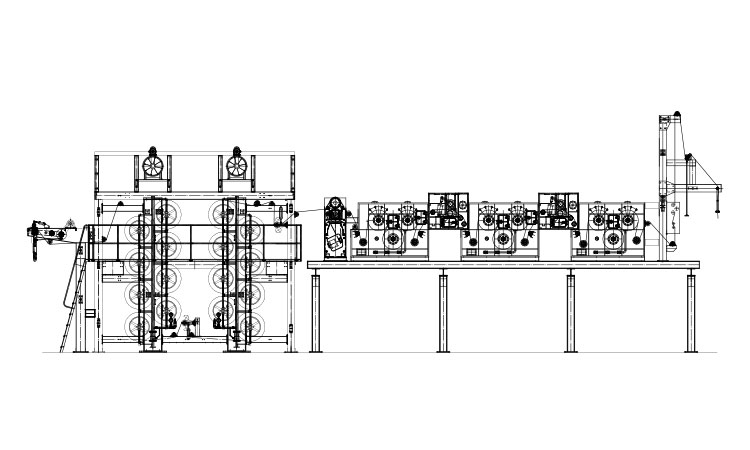

◆ Flow chart
